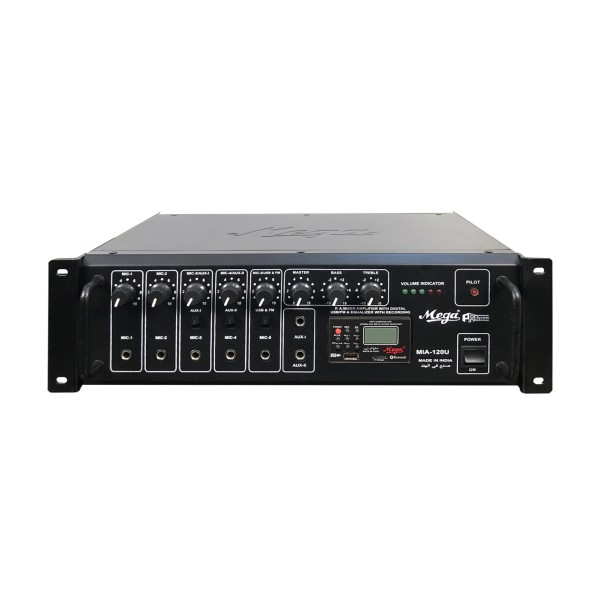

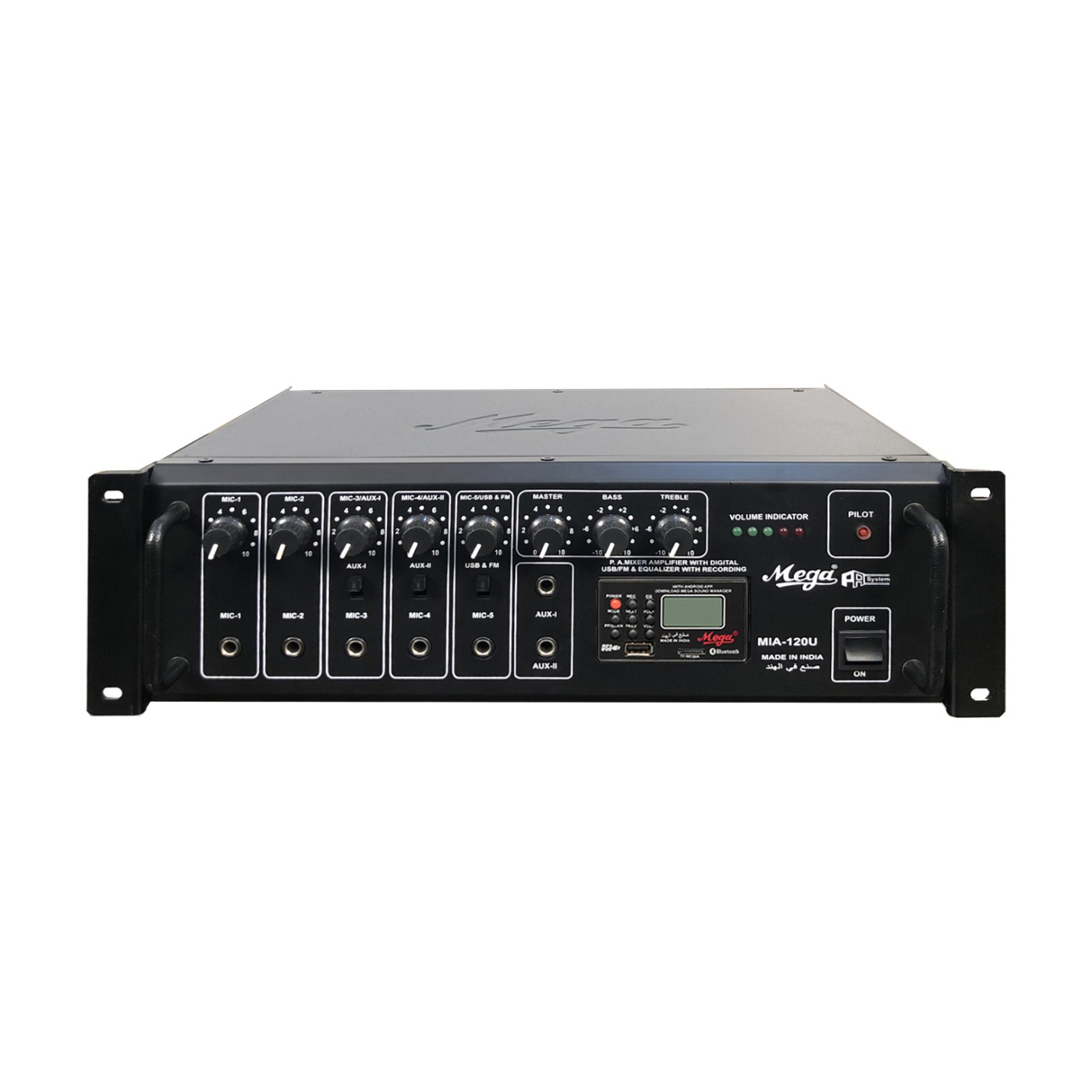

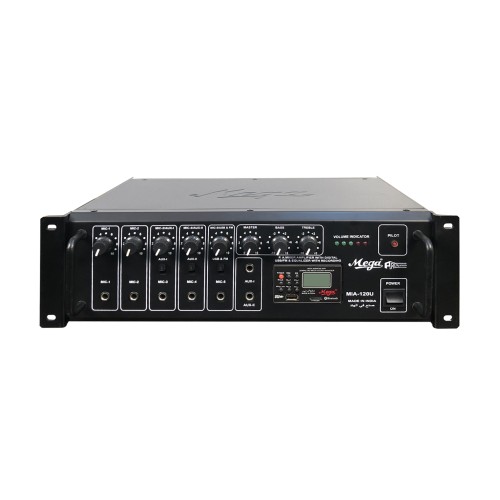

MIA 120U P.A Medium Power Mixer Amplifier
Click Image for Gallery
120W AC / DC 12V, 5 Mike 2 Aux, USB / SD Card Player & Recorder with FM
- 19" racks mountable sturdy chasis in 2U height.
- Uses toshiba 5200 transistor.
- Multiple inputs for 5 Mikes/ 2 Aux source.
- In built Bluetooth facility.
- Active bass & Treble control.
- Preamplifier and line out for connecting to a booster amplifier and for recording the programme.
- Led Array for output level.

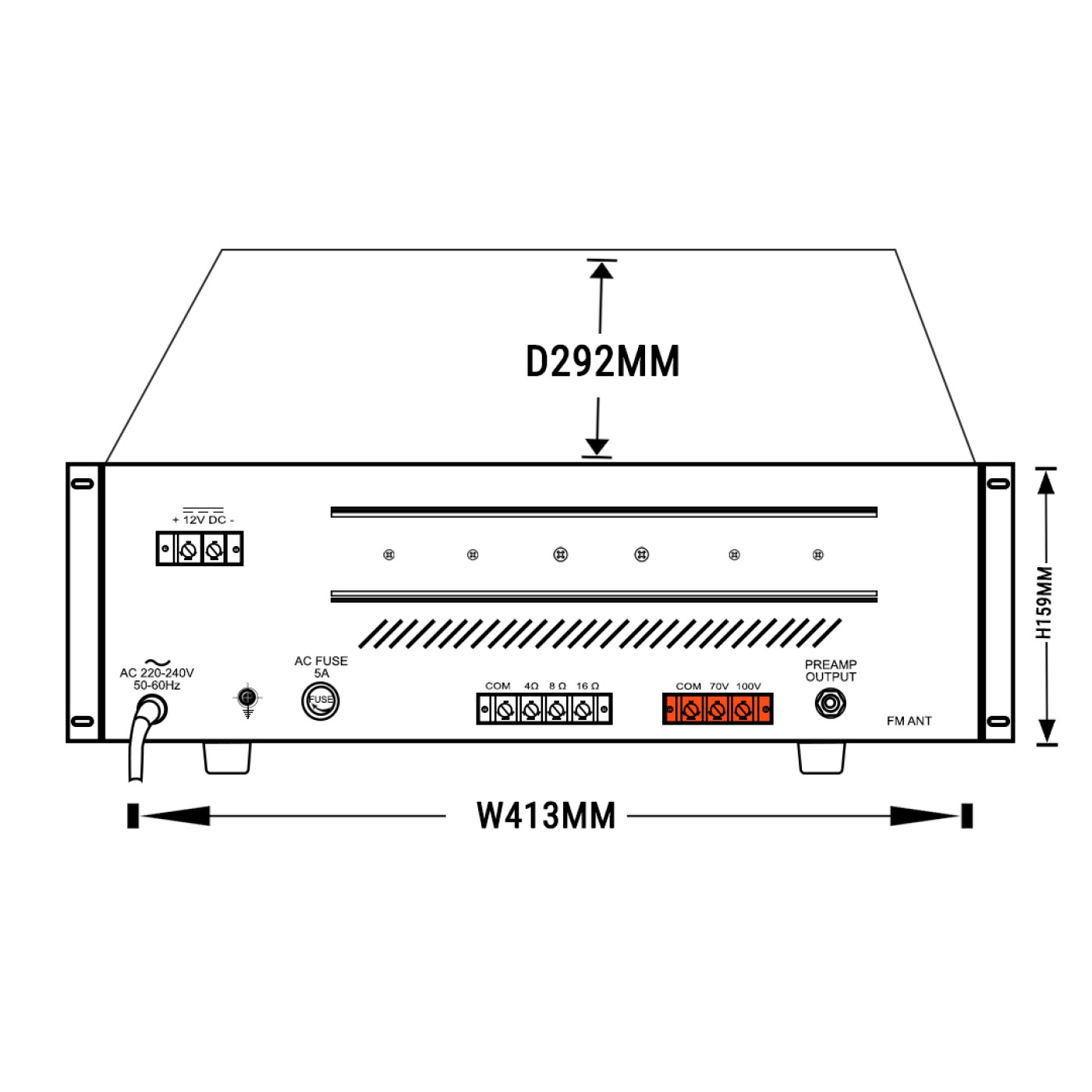

- External Speaker connection are provided for 4,8,16 Ohms and 70V and 100 V line.
| Specification | |
| Model | MIA 120U |
| Weight | 11.800 Kg. |
| Frequency Response | 50-15000 Hz +- 3dB |
| Power Requirements | AC 220 - 240 V 50/60 Hz | DC 12V ( 1 X 12 V Car Battery ) |
| Power Output | 120 W (RMS), at 10% THD |
| Input Channels | 5 Mikes | 2 Aux | 1 USB Port | 1 SD / MMC Card Reader |
| Tone Control | Bass : - +_10dB at 100 Hz | Treble : - +_10 db at10 Khz |
| Pre-amp, Output | 200mV/600 Ohms |
| Line Output | 1V/1K ohms |
| Signal To Noise Ratio | 60 dB |
| Output Tags For | 4 - 8-16 Ohms each zone |
| Speaker Matching | 70V-100V Line |
