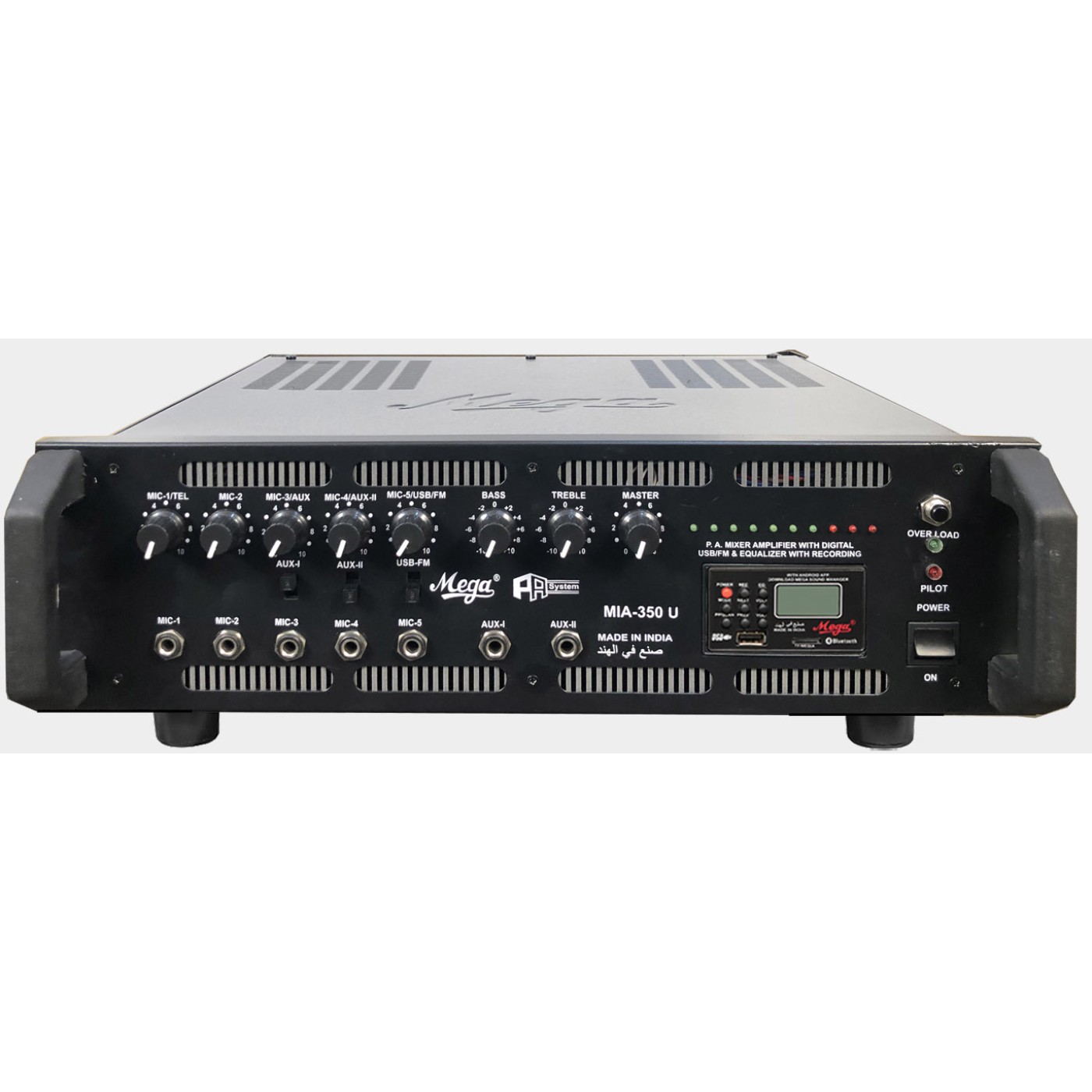

MIA-350U P.A High Power Mixer Amplifier

Click Image for Gallery

19" racks mountable sturdy chasis in 3U height.
Uses toshiba 5200 transistor.
Multiple inputs for 5 Mikes/ 2 Aux source.
In built Bluetooth facility.
Active bass & Treble control.
Preamplifier and line out for connecting to a booster amplifier and for recording the programme.
Led Array for output level.

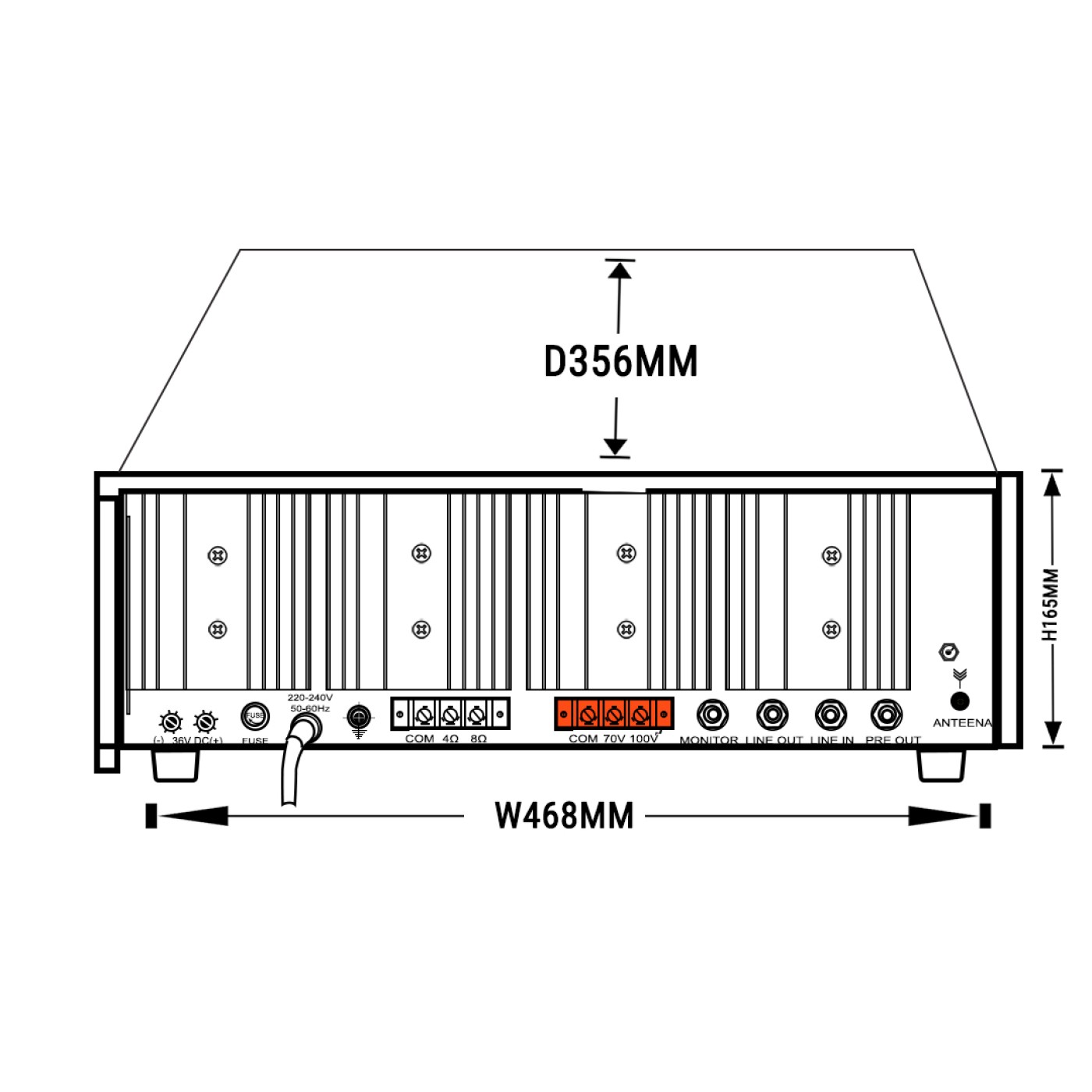

External Speaker connection are provided for 2,4,8 Ohms and 70V and 100 V line.
Provided with fans to keep the amplifier cool enabling trouble free operations under extreme climate conditions.
Line input for connecting the output from any external mixer.

Specification
Model	MIA-350U
Weight	24.000 Kg.
Frequency Response	50-15000 Hz +- 3dB
Power Output	490 W (Max), 350 W (RMS), at 10% THD
Input Channels	5 Mikes \| 2 Aux \| 1 USB Port \| 1 SD / MMC Card Reader
Tone Control	low : - +_10dB at 100 Hz \| Hi : - +_10 db at10 Khz
Pre-amp, Output	200mV/600 Ohms
Line Output	1V/1K ohms
Signal To Noise Ratio	60 dB
Output Tags For	2-4 - 8 Ohms each zone
Speaker Matching	70V-100V Line
Power Requirement	AC 220 - 240 V 50/60 Hz \| DC 36V ( 3 X 12 V Car Battery )
