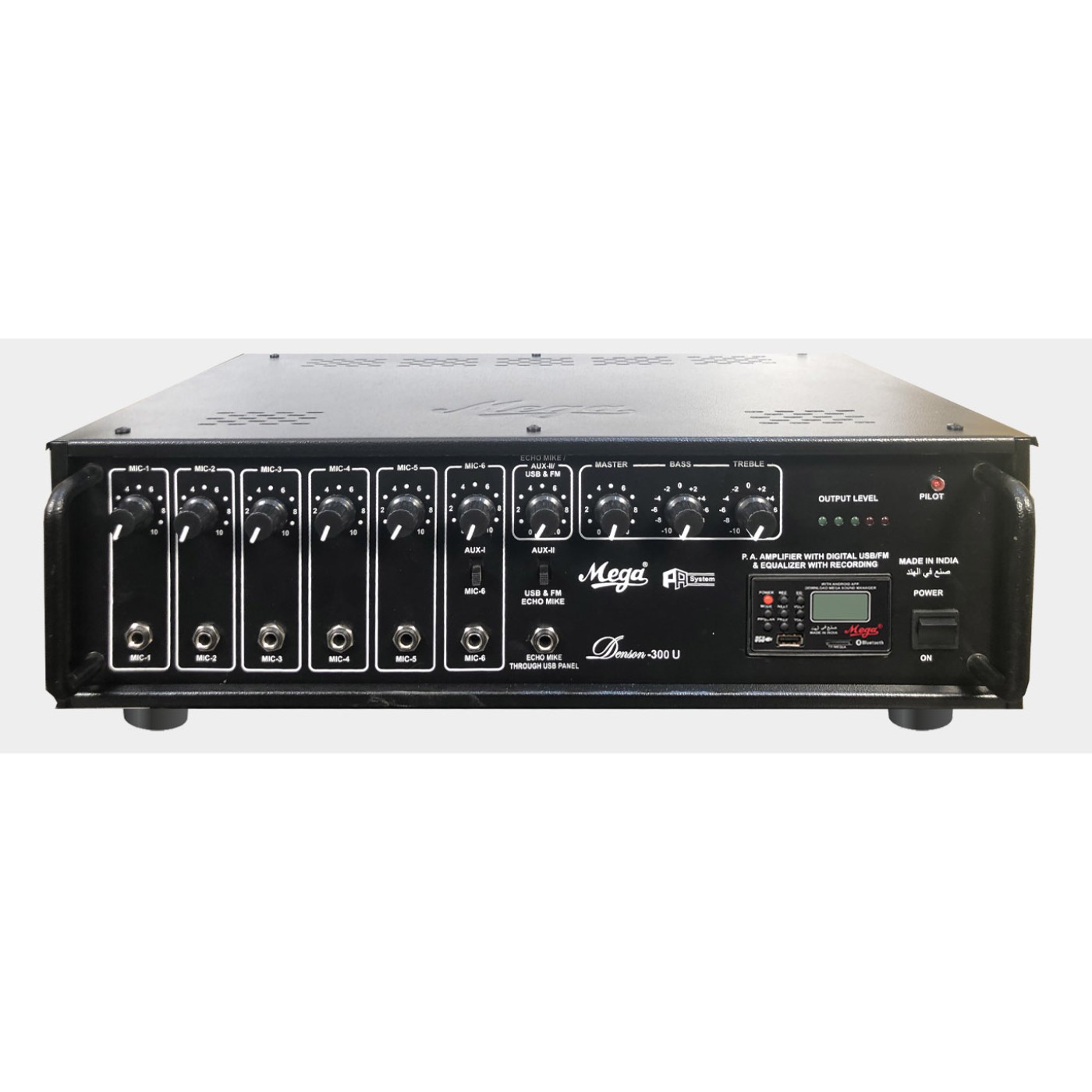

Denson 300U High power mixer Amplifier
Click Image for Gallery
300W AC / DC 24V, 6 Mike 2 Aux, USB / SD Card Player & Recorder with FM
- Multiple inputs for 6 Mikes/ 2 Aux source.
- Preamplifier and line out for connecting to a booster amplifier and for recording the programme.
- Passive bass and treble control.
- In built Bluetooth facility.
- Led Array for output level.

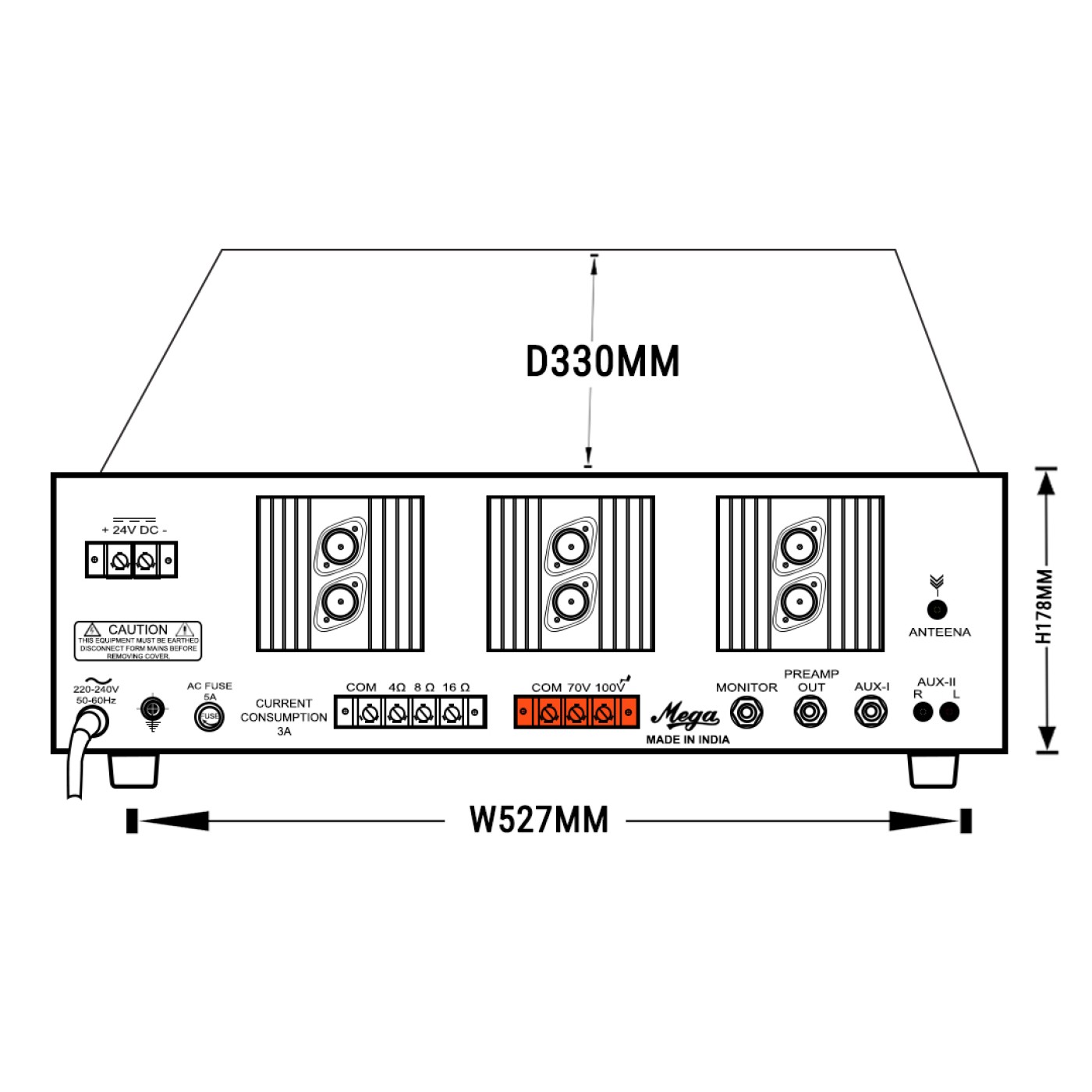

- External Speaker connection are provided for 4,8.16 Ohms and 70V and 100 V line.
Specification | |
Model | Denson 300U |
Weight | 20.500 Kg. |
Frequency Response | 50-15000 Hz +- 3dB |
Power Requirements | AC 220 - 240 V 50/60 Hz | DC 24V ( 2 X 12 V Car Battery ) |
Power Output | 300 W (Max) |
Input Channels | 6 Mikes | 2 Aux | 1 USB Port | 1 SD / MMC Card Reader |
Tone Control | Bass : - +_10dB at 100 Hz | Treble : - +_10 db at10 Khz |
Pre-amp, Output | 200mV/600 Ohms |
Line Output | ---------------- |
Signal To Noise Ratio | 60 dB |
Output Tags For | 4 - 8-16 Ohms each zone |
Speaker Matching | 70V-100V Line |
