MIA 250u USB/SD Card Player & Recorder with FM

Click Image for Gallery

19” Rack Mountable Sturdy Chasis in 3U Height

Uses Toshiba 5200 Transistors

Multiple inputs for 5 Mikes / 2 Aux source.

In-built Bluetooth facility.

Active bass and treble control.

Preamplifier And Line Out for connecting to a booster amplifier and for recording the

programme.

LED Array for output level.

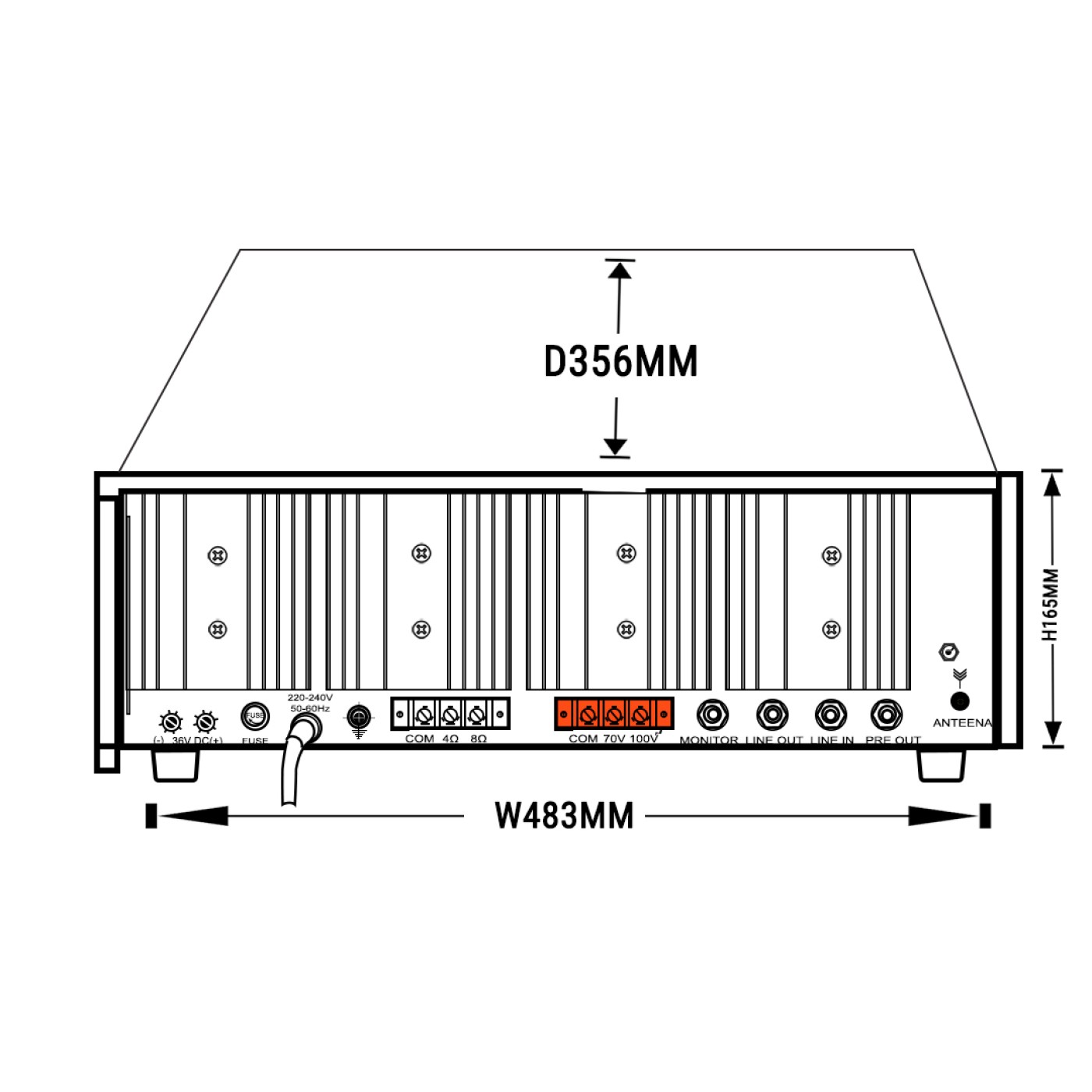

External speaker connections are provided for 4 & 8 Ohms and 70V, 100V line.

Provided with fans to keep the amplifier cool enabling trouble free operations under

extreme climate conditions.

Line Input for connecting the output from any external mixer.

With Monitor Facility.

Specification
Model	MIA - 250U
Weight	20.000 Kg.
Frequency Response	50-15000 Hz ± 3dB
Power Requirements	AC 220-240 V 50/60 Hz DC 24 V (2 X 12 V CAR BATTERY)
Power Output	300 W (Max.), 210W (RMS) at 10% THD
Input Channels	5 Mikes 2 Aux. 1 USB Port 1 SD / MMC Card Reader
Tone Control	Bass : ±10dB at 100Hz, Treble : ±10dB at 10KHz,
Pre-amp, Output	200mV / 600 Ohms
Line Output	1V / 1K Ohms
Signal To Noise Ratio	60dB
Output Tags For	4-8 Ohms
Speaker Matching	70V-100V Line
